Kessebohmer Convoy Lavido Tall Unit
Non-returnable
Cabinet Width
Finish
Optional Feature
Dispatch Notes:
Choose Quantity :
Product Information
Product Details

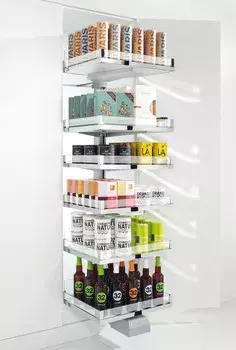

The Kesseböhmer Convoy Lavido is a premium, front-independent pantry pull-out system. SoftSTOPPplus is its built-in advanced damping and pull-out mechanism, ensuring the heavy-load cabinet slides smoothly without slamming, whether you are opening or closing it.
Specifications
- Pull-out travel: 470 mm
- Clear inside depth: ≥ 500 mm
- Clear inside height: 2000-2099 mm
- Clear Cabinet width
- 450 mm(clear inside width 414 mm)
- 600 mm(clear inside width 564 mm)
- Permissible load on the pull-out fitting: System weight + contents = max. 130 kg
Core Features
- Three-Sided Access: The "floating" trays and steel single-tube support frame allow you to see and grab items from the front and both sides.
- Infinite Adjustability: Tray heights can be adjusted steplessly without tools to accommodate tall bottles or small spice jars.
- SoftSTOPPplus for damped(soft) closing plus self-closing of the storage cabinet.
- SoftSTOPPpro delivers damped(soft) opening
- ClickFixx reduces installation time and at the same time ensures a high standard of installation. Adjustment is done in no time with a simple screwdriver.
- Synchromatic: Runner with forced synchronisation for 100% reliable function
- eTouch Upgrade: A gentle push against the front with the hand or even the knee triggers a fully automatic, gentle and harmonious opening process.
eTouch for CONVOY Lavido
Set (consisting of handle and motor)
| Specification | Details |
|---|---|
| Assembly Glue | In place |
| Power Supply | Battery CR 2032, 3V (supplied) |
| Motor | Included |
| Mains Connection | Euro 8 as per EN 60320/C8; 1.5 m cable, Black |
| Voltage | 110–240 V AC, 50/60 Hz, ≥ 2 A |
| Rated Power | 60 Watt |
| Standby Power | < 1 Watt |
| Dimensions (L × B × H) | 388 × 48 × 100 mm |
| Weight | 1.2 kg |
| Max. Pull-out Weight | 120 kg |
| Housing Colour | Grey (7930) |
| Product Compatibility | CONVOY Lavido with SoftSTOPPpro and SoftSTOPPplus |
| Assembly Materials (supplied) | 3 wood screws, 4.5 × 100 |
| Motor Position | Beside and to right of the runner |
| Electrically Assisted | Full opening and closing |
