Hettich Grant 400 Neo Sliding Fittings
Non-returnable
Component Type
Dispatch Notes:
Choose Quantity :
Product Information
Product Details

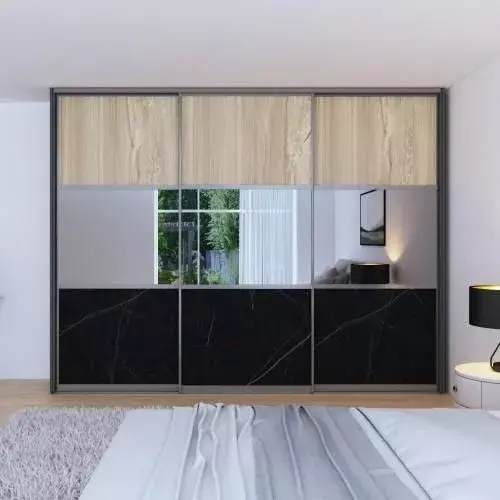

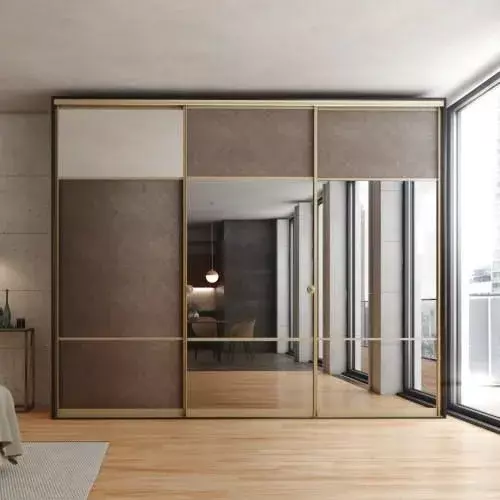

Hettich Grant 400 Neo Floor to Ceiling Sliding System 2/3 Door Components
Twin track bottom running sliding partition door system
Inset door position
For glass/wooden/acrylic doors

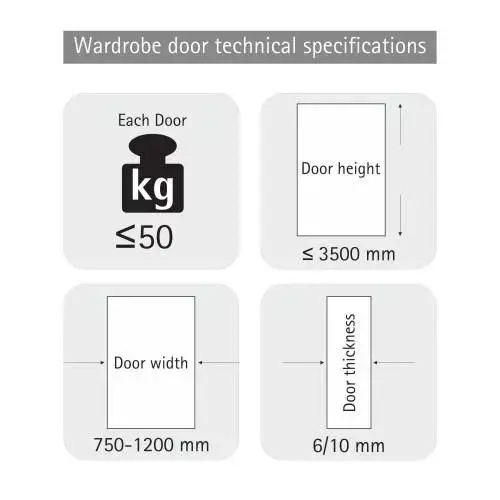

Max. door height 3500 mm
Door width 750 - 1200 mm
Space required for profile installation 83 mm
Max. door weight 50 kg/per door

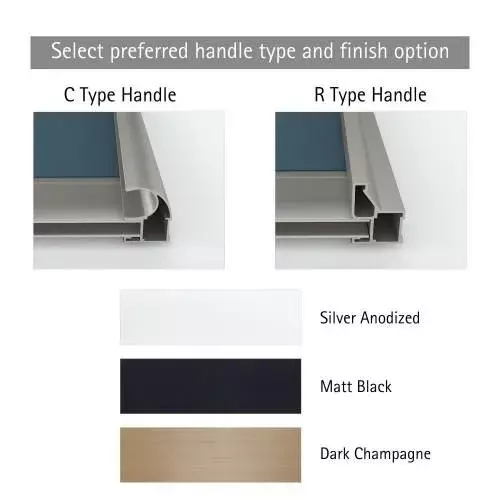

Soft opening & soft closing Aluminum Door Profiles : Top Frame Profile, Bottom Frame Profile, Vertical Frame Profile, Transverse or Middle Frame Profile
Insert Panel Thickness : 5 mm, 7 mm & 9 mm
Insert Panel Material : Wooden Panel, Glass, Mirror, Acrylic Sheet etc. or combination
Seals : there of Seals for 5 mm insert & Brush seal for dust proofing
Fixing accessory : Fixing screw Standard thread 6 x 30 mm
