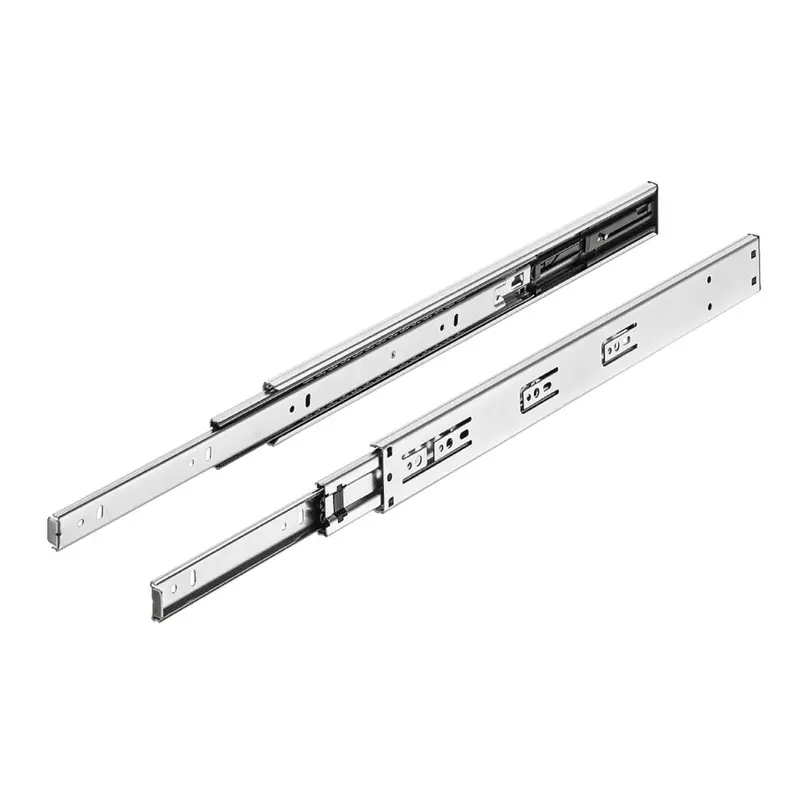

Hafele Telescopic Drawer Channel
35 kg Ball Bearing Runners. Smooth and Reliable Operations
Size
Motion Technology
Finish
Dispatch Notes:
Choose Quantity :
Product Information
Product Details
Regular Channels
- Mounting Technique: Side Mounting
- Extension Type: Full Extension
- Material: Steel
- Finishes: Black and Zinc Plated
- Weight Carrying Capacity: 35 kg per pair
- Nominal Lengths: 250 mm, 300 mm, 350 mm, 400 mm, 450 mm and 500 mm
- Gap between cabinet panel and drawer should not be less than 12.5 mm or greater than 13.2 mm.
- Salt Spray Test: 72 hours
- Testing: 50,000 cycles
- Compliance: Certified as per BIS IS 17954:2023 and EN 15338:2007 + A1:2010 standards for performance and durability
Softclose Channels
- Mounting Technique: Side Mounting
- Extension Type: Full Extension
- Material: Steel
- Finishes: Black and Zinc Plated
- Weight Carrying Capacity: 30kg per pair
- Nominal Lengths: 300 mm, 350 mm, 400 mm, 450 mm, 500 mm and 550 mm
- Gap between cabinet panel and drawer should not be less than 12.5 mm or greater than 13.2 mm.
- Salt Spray Test: 72 hours
- Testing: 50,000 cycles
- Compliance: Certified as per BIS IS 17954:2023 standard for performance and durability
