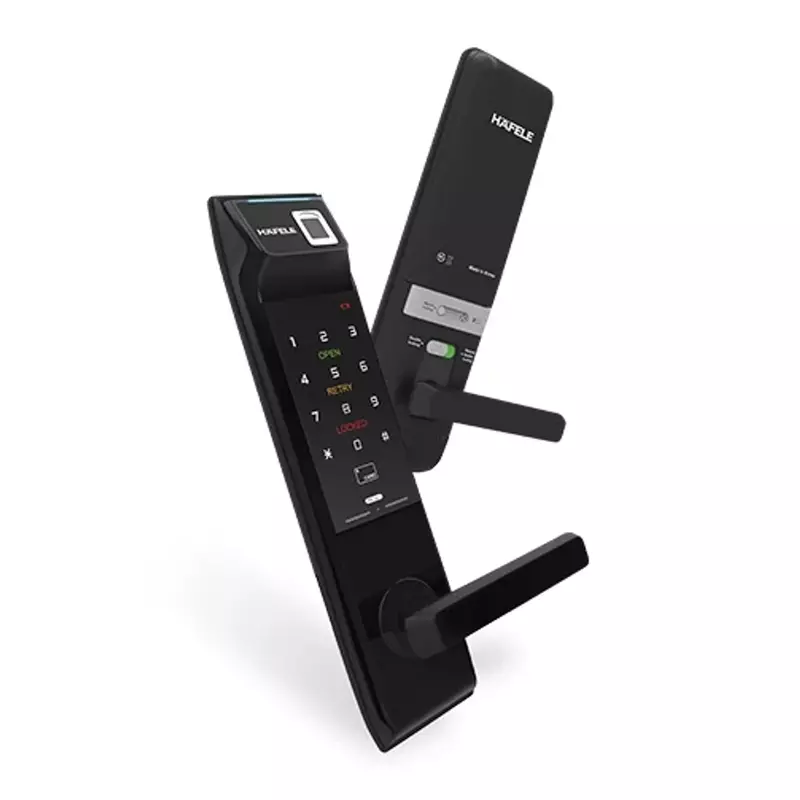

Hafele RE-AL Digital Lock

Capacitive fingerprint: Up to 100 unique accesses

Keypad or password: 1 master access, upto 3 unique user accesses

RFID cards: Up to 100 unique accesses

Mechanical key: 2 user keys

 EXTERIOR AND INTERIOR LOCK BODY

 » Material: Steel

 » Finishes: Black Matt

 » Battery*: AA (3,000 cycles - 8 batteries), jump start (9V)

 » Door thickness: 40 - 50 mm

 *Note: Need to be purchased separately.

MORTISE LOCK BODY

 » Material: Stainless Steel

 » Strike plate: Left and right handling

 » Latch type: Reversible

One digital lock set includes the following components:

Exterior Lock Body -1

Interior Lock Body -1

Mortise Lock Body -1

Installation Accessories for Door Thickness 40 - 50 mm - 1 set

SMART TECHNOLOGIES

» Smart Password: The smart password technology allows you to hide your 6-8 digit numeric password between 4-digit random numbers. For example, if your password is 123456 , the smart password allows you to hide the password before, after or in between other random digits, like 9876 123456 9659 . This function is particularly helpful when you don’t want to reveal your password to a person standing next to you while you are accessing your home.

» Smart Voice: RE-AL Digital Lock talks to you during the instances at which you engage with the lock. These interactive engagements include step-by-step voice guidance by the lock while adding a user, setting a password or enabling a function/mode; or simple voice notifications from the lock about the various operative modes or incorrect usage of the lock.

» Smart Etiquettes:: Since every digital lock from Häfele talks to you, it is pertinent to have the right etiquettes to adjust the volume of the lock voice. This technology allows you to seamlessly adjust the voice volume or put it on mute, especially when you are entering your home in the wee hours of morning ensuring that your neighbors are not jolted out of their sleep by your talking lock.

» Smart Freeze: This lock has a narrow tolerance for incorrect entries of access by way of a wrong password or unfamiliar fingerprint or RFID card – 6 wrong attempts on password and RFID card and 12 wrong attempts on fingerprint result in a lock-freeze for 30 seconds. This feature reduces the possibilities of unwanted intrusion.

USER ACCESS RIGHTS

» Admin: The admin user gets access to the complete functionality of the lock including adding or deleting the access rights of users and guests. In addition to this, the admin can also reset the lock, get into the settings and check the logs, access advanced options, upload user data and update the firmware. RE-AL lock allows creating 1 admin account.

» User: Users can unlock the lock either using the unique preset password and/or registered fingerprint or RFID card to allow access to the home at any point of time.

LOCKING MODES

» Auto Locking: Enables automatic locking of door latch, 4 seconds after it closes, restricting access into your home. In this case, the door latch cannot be opened from outside manually and would require an authorized fingerprint, RFID card or password to open it.

» Manual Locking: This mode can be enabled for doors that are positioned in areas which have high movement traffic; for e.g. a corridor door between your living room and bedrooms or typically a door in your office or boutique shops. In the manual locking mode, the user has to physically lock the door by touching the front panel / fingerprint scanner when required. The manual locking mode is also an ideal back-up in emergency situations like technology failure or when the battery discharges. In Häfele’s RE-AL lock, manual locking mode can be activated by turning the lever handle in the upward direction.

» Privacy Locking: Enables locking the door from the inside by pressing a safety button on the rear lock body and is used to restrict access into your home. The only way a person can enter your home from the outside, in such a situation, is by using the mechanical key or master password.

» Defense Locking: The Defense Mode can be enabled from the outside by pressing a button on the front lock body and is used to notify if someone is trying to leave the house. A typical situation when you could use the Defense Mode is when your partner activates this mode while leaving the house and you want to take a nap yet ensure that during this time your child doesn’t leave the house without your supervision. In such a case the moment your child presses the lever handle to open the door, an alarm sets off informing you that someone is trying to leave the house without your permission.
