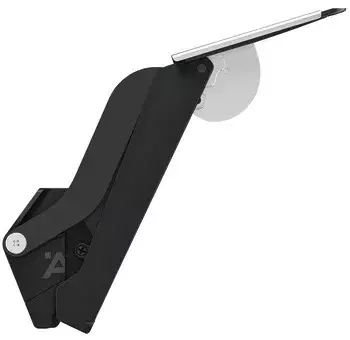

Hafele Free Space Lift Up 1.11 Soft Close

The Häfele Free Space is a compact, high-performance flap fitting system designed to replace traditional bulky stays in wall cabinets. Its "free" designation refers to the fact that it requires no hinges, as the mechanism itself handles the door's entire range of motion, leaving more usable space inside the cabinet.

Core Specifications

• Cabinet Height: Compatible with heights ranging from 225 mm to 650 mm.

• Cabinet Width: Suitable for widths up to 1,200 mm.

• Opening Angle: Standard opening of 107° (can be restricted to 90° via an additional component).

• Material: Durable combination of Steel and Plastic.

• Installation Depth: Requires only 63 mm of internal depth, making it one of the flushest systems on the market.

Key Features

• Slim Design: Because it is so thin, it integrates seamlessly into shallow cabinetry and maximizes the storage area for plates or pantry items.

• Multi-Position Stop: The mechanism allows the flap to stay open at any position, ensuring it doesn't slam shut or fly out of reach.

• Tool-Free Assembly: Features a "plug-and-play" design where the front panel clips onto the pre-mounted fittings without needing tools.

• 3D Adjustment: Offers precise alignment of the door panel (height, side, and tilt) via accessible adjustment screws.
