Hafele Built-In Ironing Board
Customize
Product Details

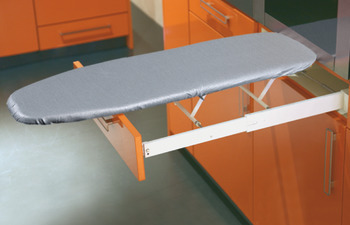

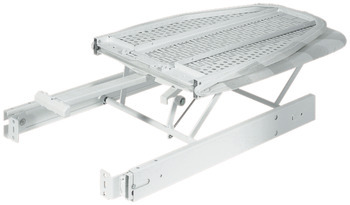

The Häfele Ironfix is a high-end, built-in ironing board designed for discreet installation within a standard base cabinet drawer.Its standout feature is an automatic extension mechanism that unfolds the board as the drawer is opened.
Technical Specifications
| Feature | Details |
| Material | Epoxy-coated Steel (White RAL 9016); Cotton cover with foam lining |
| Mounting Type | Behind a drawer front panel (requires a fold-down front for optimal access) |
| Extension Length | 950 mm (Approx. 37 1/2") |
| Cabinet Inside Width | Continuous adjustment for 362 mm – 500 mm (14 1/4" – 19 11/16") |
| Min. Inside Depth | 500 mm (19 11/16") |
| Max Countertop Overhang | 55 mm (2 3/16") |
Design Features
Space-Saving: The board folds in half and sits tucked away when the drawer is closed, making it ideal for compact kitchens, walk-in wardrobes, or hotel rooms.
User Convenience: The support arm extends automatically, and the board features an integrated spring mechanism to assist with effortless deployment.
Versatile Fit: The width adjustment allows it to fit into most standard cabinet sizes without custom modifications to the hardware.
Heat Resistance: Includes a steam-permeable, heat-resistant cotton cover in a Grey Stripes pattern.
Comparison: Shelf-Mounted vs. Drawer-Mounted
While the 568.60.793 mounts to a shelf, the Hafele Ironfix (568.60.710) is designed specifically for installation behind a drawer front panel. The 568.60.710 model automatically extends as the drawer is opened, whereas the 568.60.793 is typically pulled out manually from a shelf space.
