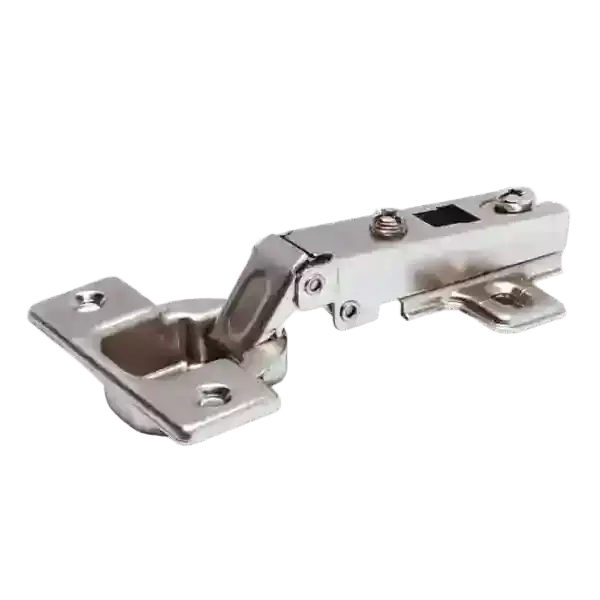

Ebco Softclose Hinges

Euro Slow Motion Hinges – Slide-On

• Unique built in damping system allows the shutter to close in slow motion without banging.
• Slide-on Softclose 2D hinges.
• Available in Full overlay, Half overlay & Full Inset.
• Max opening 105°
• Max shutter size: 34" x 22" (850mm x 550mm) for 2 hinges.
• Shutter Thickness: 14mm to 22mm.
• Shutter cavity: Ø35mm, 12mm deep, cavity 4mm from edge.

Hinge Slow-Motion 'S' Click On (A) - Clip On

• Unique built in damping system allows the shutter to close in slow motion without banging.
• Clip-on Softclose 2D hinges.
• Available in Full overlay, Half overlay & Inset.
• Max. opening : 105°.
• Max. Shutter size: 34" x 22" (850mm x 550mm) for 2 hinges.
• Shutter Thickness: 16mm to 19mm.
• Shutter Cavity: Ø35mm, 12mm deep, cavity 4mm from edge.

Hinge Slow Motion - 3D

• Mounting plate has three way adjustment (3D)
• Unique built in damping system allows the shutter to close in slow motion without banging
• Clip-on Softclose 3D hinges.
• Available in Full overlay, Half overlay & Inset
• Max opening: 105º
• Max. Shutter size: 34" x 22" (850mm x 550mm) for 2 hinges
• Shutter Thickness: 16mm to 19mm
• Shutter cavity: Ø35mm, 12 deep, cavity 4mm from edge
• Finish: Nickel Plated

Hinge Slow Motion- SS304

• Unique built-in damping system allows the shutter to close in slow motion without banging the door.
• Clip-on SS304 Softclose 2D hinges.
• Available in Full overlay, Half overlay & Inset.
• Max. Shutter size : 34'' x 22'' (850 mm x 550 mm) for 2 hinges
• Shutter Thickness: 16mm to 19mm.
• Finish: SS 304

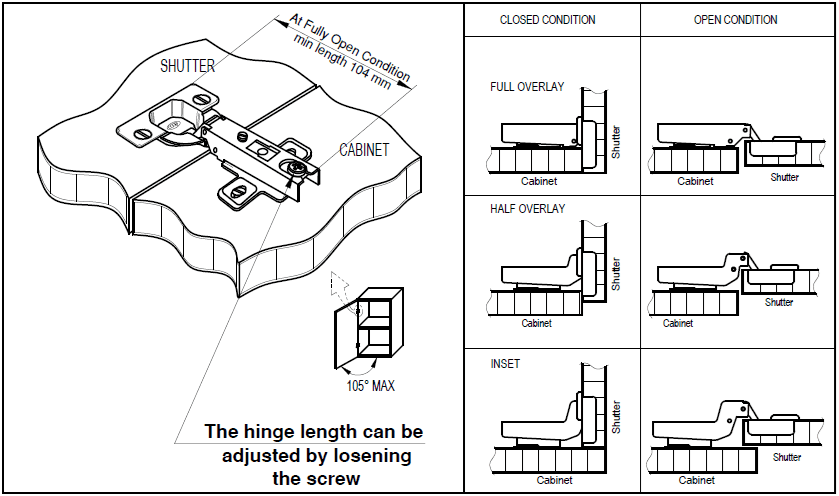

Choose right crank by referring the below image.
