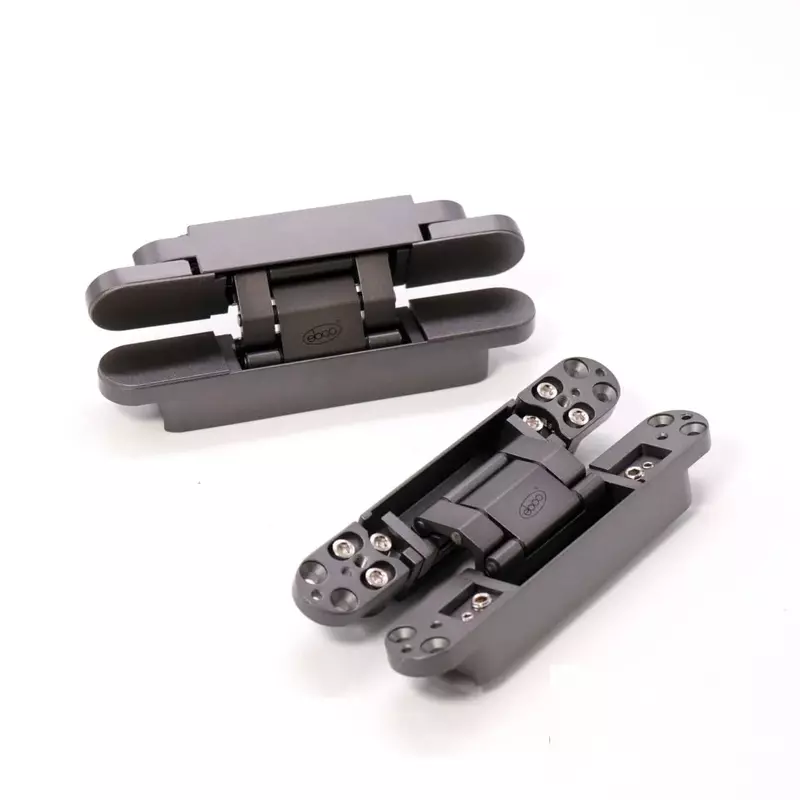

Ebco Concealed Hinge- 3D

The Ebco Concealed Hinge – 3D is engineered for strength, precision, and aesthetics in architectural fittings. Designed for flush wooden door applications, it offers advanced 3D dimensional adjustment even after installation, ensuring perfect alignment and smooth operation.

• 3D Dimensional Adjustment – Fine‑tune door alignment after installation.

• High Load Capacity –

  • 2 hinges support 40 kg, 80 kg, or 120 kg depending on door thickness.

• Door Compatibility –

  • Minimum thickness: 35 mm (40 kg), 40 mm (80 kg), 45 mm (120 kg).

  • Maximum width: 850 mm, 1000 mm, 1400 mm.

• Wide Opening – 180° for full accessibility.

• Premium Finish – Anthracite coating for a sleek, modern look.

• Package Content – Set of 2 hinges.
