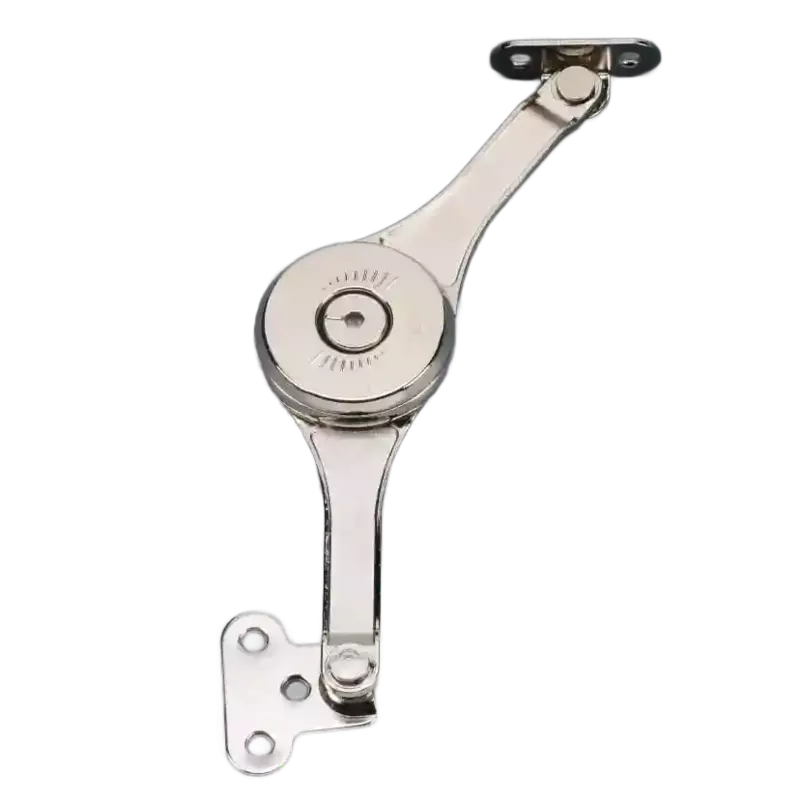

Ebco Cabinet Stay
Non-returnable
Out of stock Out of stock Out of stock Out of stock
Rs 281.00 - Rs 495.00
Rs 281.00 Rs 433.00
Rs 495.00 Rs 762.00
Rs 281.00 Rs 433.00
Rs 495.00 Rs 762.00
Model
Select Model
type
Select type
Customize
Available Offer
Share :
Product Details
Cabinet Stay
- Unique design with a built-in braking arm
- To be used in cabinets having upward opening shutters
- Recommended to use with Slip on / Click on Hinges (Overlay)
- Fittings can be varied for different opening angles
- Manufactured out of die-cast zinc and chrome plated
- System 32 compatible
- Manufactured out of die-cast zinc and chrome plated
Cabinet Stay - Heavy
- Specially designed for cabinet shutter which supports the door and keeps it open
- Ideal for overhead cabinet shutters.
- Flexible to mount for three different opening angles - 75º, 90º & 110º.
- Pressure can be adjusted with Allen key.
- Recommended to use with 'Ebco' Slip on / Click on Hinges (Overlay)
- Max. recommended shutter size: with one stay - 900 x 450 x 18mm
- Max. recommended shutter size: with two stays - 900 x 650 x 18mm
- Max. Shutter Load : with one stay - 6 Kgs
- Max. Shutter Load : with two stays - 13.3 Kgs"
- System 32 compatible.
- Manufactured out of Zinc alloy and Nickel Plated.
